Sump Cleaning Machine

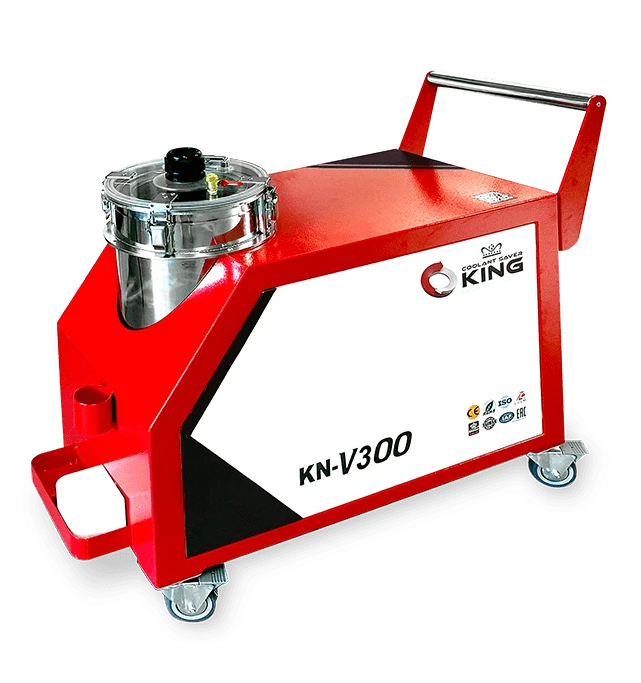

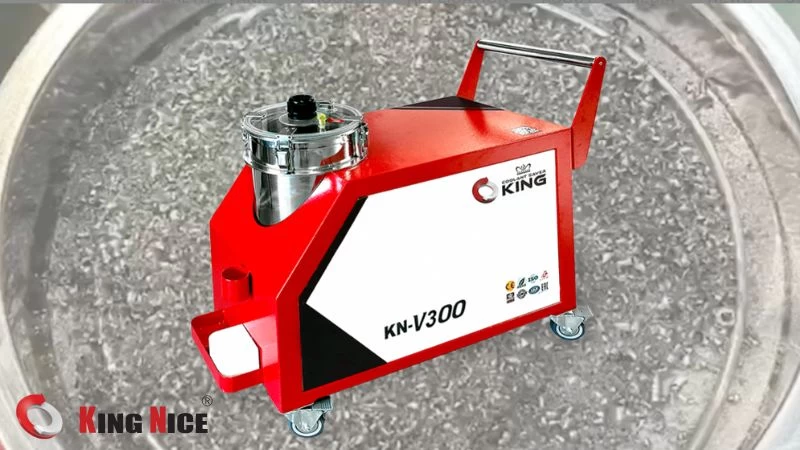

The Sump Cleaner Unit - KN-V300
The KN-V300 Sump Cleaning Machine is a high-efficiency solution for CNC coolant tank maintenance. Equipped with a powerful suction spout and high-capacity pump, it extracts used coolant and removes chips, swarf, and sediment with ease—minimizing cleaning time and maximizing machining performance.
With growing concerns over water pollution and industrial waste, implementing a reliable sump cleaner is key to maintaining CNC production efficiency while reducing environmental impact.
The KN-V300 Sump Cleaner unit integrates filtration and sludge removal to reduce machine failures and lower part defect rates. By eliminating oil and fine particulate buildup, it ensures longer coolant life, greater machining precision, and reduced operational costs—making it an ideal vacuum chip removal system for modern CNC workshops.
The KN-V300 Sump Cleaner helps streamline coolant tank maintenance, boost operational productivity, and reduce long-term costs—making it a smart investment for modern CNC shops.
Key advantages include:
- Remove sludge, swarf, and oil from sump bottoms with high-efficiency suction.
- Extend coolant life and maintain fluid stability for precision CNC operations.
- Reduce CNC machine failures and minimize part defect rates
- Save water and coolant through effective in-process recycling
- Lower maintenance downtime and labor requirements
- Lower Stabilize sump tank volume and reduce fluid temperature during machining.
Applications: Ideal for use as a CNC chip vacuum in CNC machining, automotive and motorcycle manufacturing, metal processing, and other high-precision industries.
-

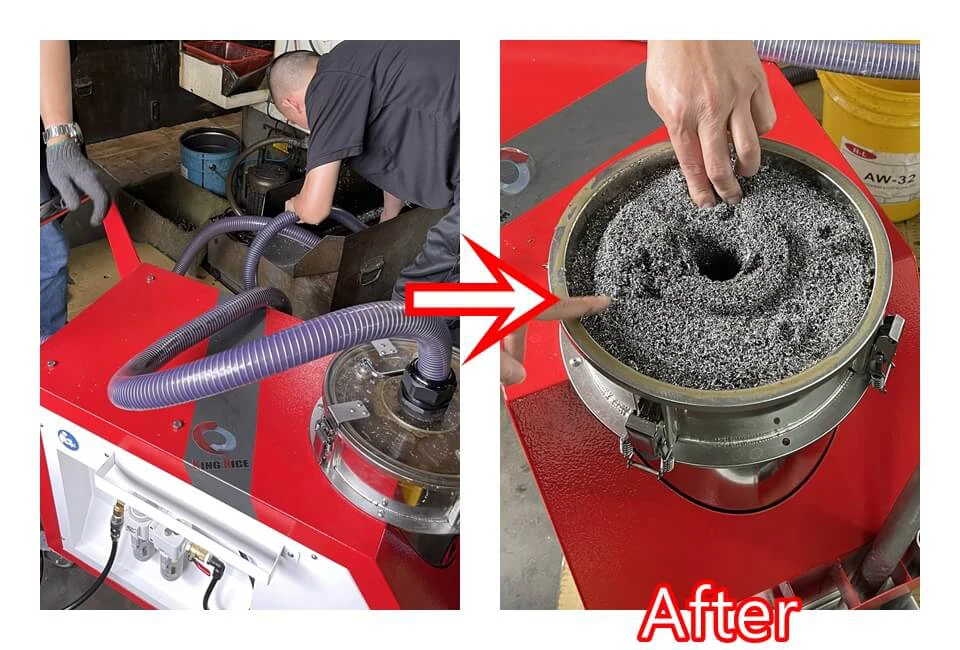

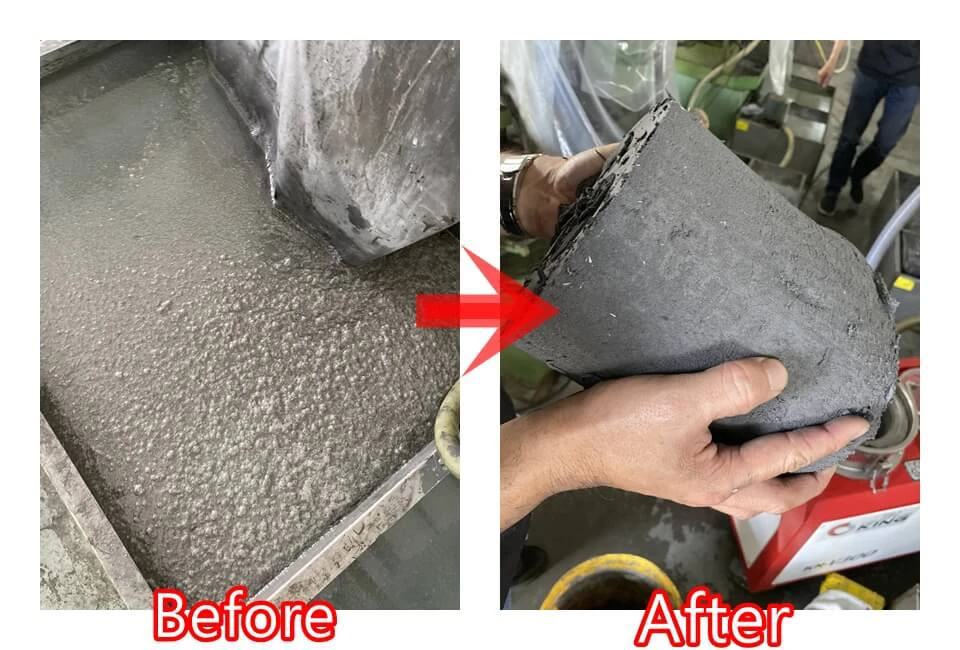

The Sump Cleaning Machine effectively removes iron filings, aluminum powder, and fine sediment.
➤ Prevents long-term buildup in CNC coolant tanks
-
Operates via air-pressure drive.
➤ Eliminates electrical hazards and improves operational safety
-
Features a patented dehydration and drying system.
➤ Accelerates sludge extraction and coolant tank maintenance
-
Supports both oily and water-soluble cutting fluids
➤ Suitable for diverse machining environments
-
Provides 1-micron filtration accuracy for suspended solids
-
Delivers short cycle times for cleaning and sludge processing
-
Widely applied in metal cutting, grinding, aluminum machining, and engineering plastics
➤ Ideal as a CNC Chip Vacuum in high-precision workshops
|
Item Model
|
KN-V300 | KN-V400 | Unit | |
|---|---|---|---|---|
| Machine Size | 1050X430X820 | 1090X450X870 | mm | |
| Filter | 12 | Customized | L | |
| Net Weight | 61 | 68 | kg | |
| Max. Flow | 300 | Customized | min | |
| Air Pump min Pressure | 0.5Mpa | Customized | - | |
| Max. Air | 0.67m3 | Customized | min | |
| Thickness Filter | 1~850 (Standard:850um) |
um | ||
| Filter/SUS 304 | 150~850 | um | ||
| KFS | - | |||
| KFN (Optional) 40~400 | um | |||
| KFW (Optional) 1~40 | um | |||
KFS Type : Thisis a durable stainless made filter, and no replacement is required.
KFN & KFW Type : This is a consumable filter, and replacement is periodically required.
